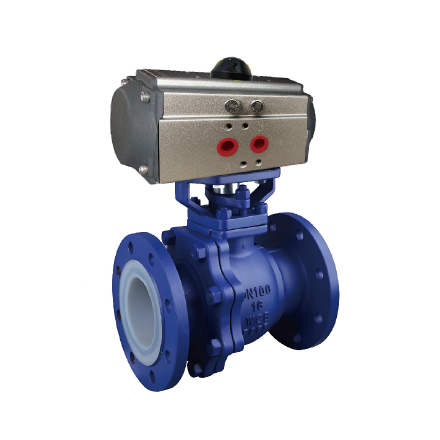

Flange O-type ball valve
Parameters
- Valve body cast steel, stainless steel, duplex steel, etc.
- ball cast steel, stainless steel, duplex steel, etc.
- stem stainless steel, etc.
- seal PTFE.
Applicable industries
Petroleum, chemical, dyeing and chemical, pesticide, acid and alkali industries.
Product overview
Relying on the rotation of the valve core to make the valve open or closed, the valve core and the inner side of the valve body are all made of fluoroplastic. It has the advantages of light switch, small volume, reliable sealing, simple structure, easy maintenance, and wide range of use. Adopting full bore and floating ball structure, the valve can be closed without leakage in the whole pressure range. Compact and reasonable structure, the valve body cavity space is minimal, reducing the medium.
- Product parameters
- Technical features
- Dimensions
- Installation guide
- Application examples
-
Nominal pressure PN10 Strength test pressure Nominal pressure*1.5MPa Seal test pressure Nominal pressure*1.1MPa -
DN L1 PN10 φD1 n-φh DN15 140 65 4-14 DN20 140 75 4-14 DN25 150 85 4-14 DN32 165 100 4-18 DN40 180 110 4-18 DN50 200 125 4-18 DN65 220 145 8-18 DN80 250 160 8-18 DN100 280 180 8-18 DN125 320 210 8-18 DN150 360 240 8-22 DN200 400 295 8-22 DN250 450 350 12-22 DN300 610 400 12-22 DN350 686 460 16-22
